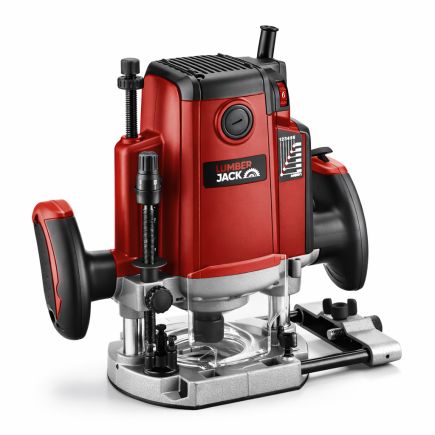

Lumberjack 1/2" Variable Speed Plunge Router 2200W

Product Code: LUM00251

Brand: Lumberjack
MPN: PR2200
Barcode: 5060504005449
Category: Power Tools, Routers, Routers & Jigs
Type: Plunge Router
Voltage: 240V
Size: 1/2
Download PDF Manual

The Lumberjack 1/2" Router is engineered to deliver powerful performance with its high-output 2200W motor, while still providing smooth, controlled freehand routing. It features a newly designed linear ball-bearing guided plunge system, which significantly improves on traditional plunge mechanisms that can suffer from sideways movement. The ball-bearing guides ensure an exceptionally smooth, low-friction plunge action that is light enough to operate with one hand.
With a maximum plunge depth of 70mm, the router travels through its full range smoothly without excessive play or resistance, helping achieve greater routing precision and control. Fine depth adjustments can be made quickly and accurately using the micro-adjustment knob, offering 0.1mm resolution with clearly marked graduations. A three-position turret depth stop and graduated depth scale allow users to preset up to three cutting depths, making it ideal for step-cutting or multiple pass routing tasks.

£159.99 £139.99

Powerful 2200W Motor: High-performance motor delivers strong cutting power for demanding routing applications.

Smooth Ball-Bearing Plunge Mechanism: Linear ball-bearing guides provide an exceptionally smooth plunge action, reducing friction and improving accuracy.

70mm Plunge Capacity: Deep plunge range allows for greater versatility across a wide variety of routing tasks.

Precision Fine Depth Adjustment: Micro-adjustment knob allows accurate depth control with 0.1mm increments for precise cutting.

3-Stage Turret Depth Stop: Enables quick selection of up to three preset cutting depths, ideal for step or incremental routing.

Variable Speed Control (9,000-22,000rpm): Six-speed settings allow the router to be matched to different materials and cutter sizes while maintaining consistent speed under load.

Soft Start Technology: Gradual motor start-up reduces kickback and improves control during operation.

Ergonomic Soft-Grip Handles: Designed for comfort and improved control during prolonged routing tasks.

Integrated Safety Features: Includes a safety lock to prevent accidental start-up and a lock-on button for continuous operation.

Tool-Free Template Guide System: Quick installation and removal of guide bushings without the need for screws, saving time during template work.

Durable Aluminium Base: CNC-machined die-cast aluminium base offers strength, stability, and reduced overall weight.

Anti-Friction Sub Base: Plastic sub-base allows smooth movement over the workpiece without damaging the surface.

Voltage: 230V

Power: 2200W

Weight: 6 kg

Variable Speed Range: 9,000 - 22,000rpm

Collet Sizes: 1/2" & 1/4"

Plunge Capacity: 0 - 70mm

Base Diameter: 170mm

Base Aperture Diameter: 60mm

Overall Height: 312mm

1 × 1/2" Collet

1 × 1/4" Collet

1 × Collet Spanner

1 × Adjustable Straight Edge Guide

1 × Trimmer Guide

1 × Template Guide

1 × Chip Guard

1 x Instruction Manual

Download PDF Manual

Features

Specification

Includes

Manual
